Bellows Compensator

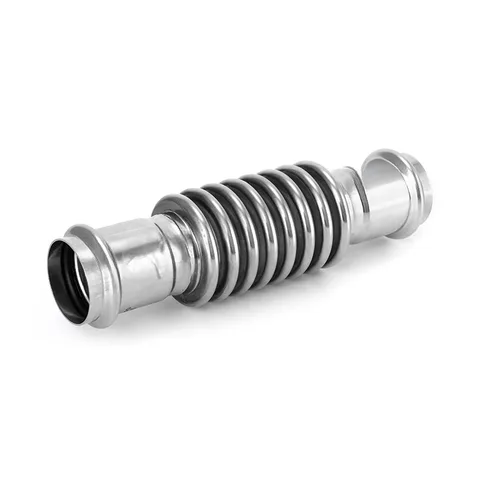

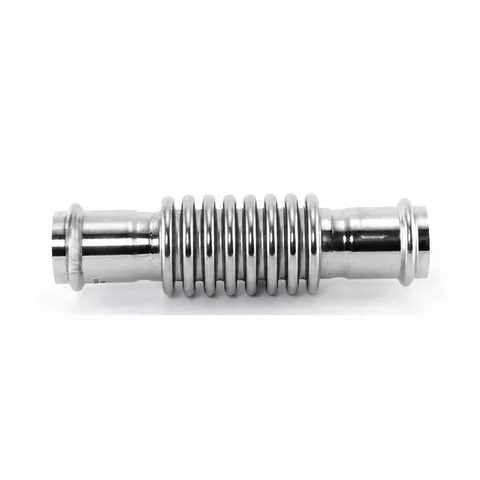

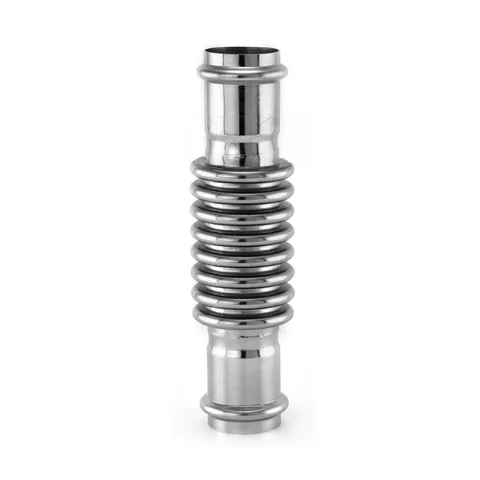

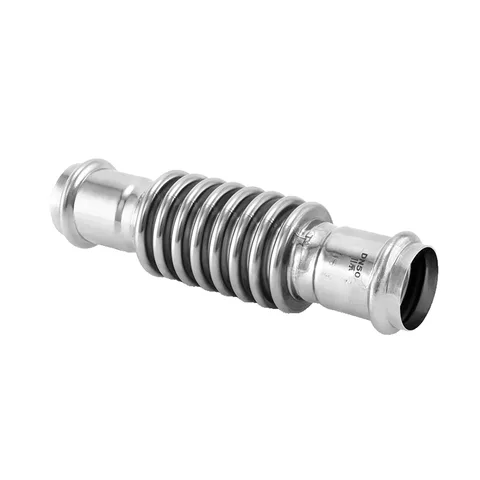

The press-end bellows compensator combines a central metal bellows section with formed pipe sockets at both ends for mating tubing.
Material | SS304, SS316L |
|---|---|
Connection | Butt Weld |
Specification | 1/2"-8" |
Product overview
Product structure
The corrugated bellows forms the flexible section between the end fittings. The bellows body and end fittings are separate features of the assembly.
Selection checks
- End fitting and hose dimensions
- Overall length and routing envelope
- Service medium and required movement
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304, SS316L
Product series
- Media / applications
- Water (Product series)
Need a different size, connection or document?
Discuss your requirements
