Flange-End Bellows Compensator

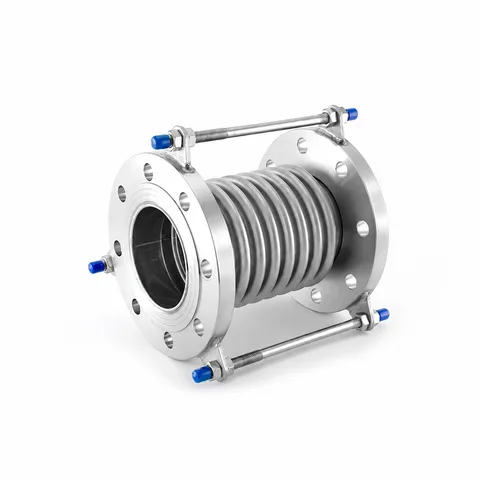

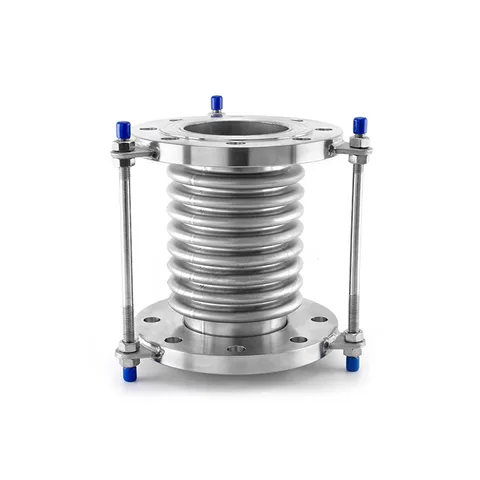

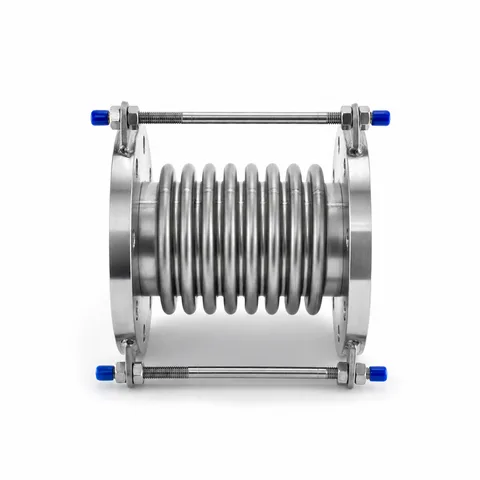

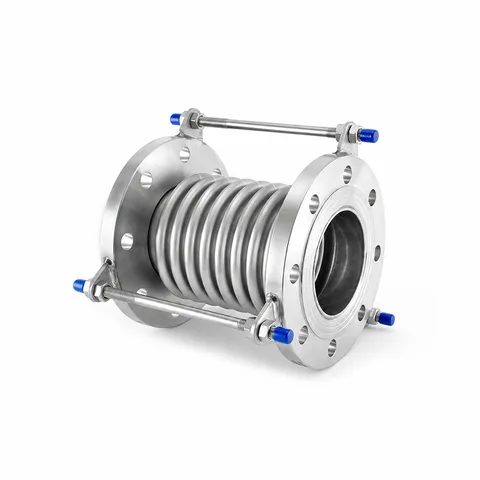

The flanged bellows compensator places a metal bellows between two end flanges, with external rods joining the end assemblies.
Material | SS304, SS316L |
|---|---|
Connection | Flange |
Specification | 1/2"-8" |
Product overview
Product structure
A flanged bellows compensator with tie rods and fasteners. Match the flange interfaces and the required installed length and movement; confirm operating limits for the supplied configuration.
Selection checks
- End fitting and hose dimensions
- Overall length and routing envelope
- Service medium and required movement
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304, SS316L
- Hose Material Options
- SS304/SS316L
Connections & dimensions
- Connection
- Flange
Product series
- Media / applications
- Water, Oil (Product series)
Need a different size, connection or document?
Discuss your requirements
