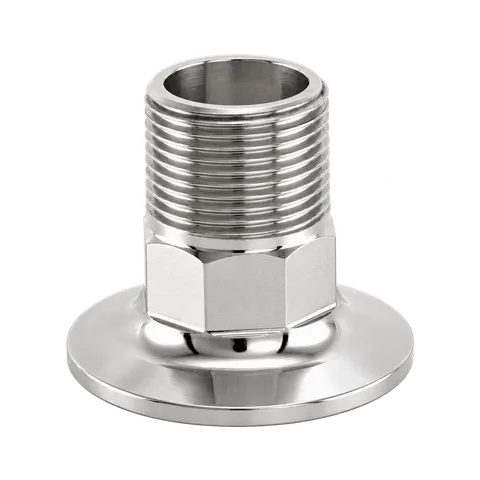

Extended Hex Male-Thread Clamp Adapter
An extended male thread and large hexagonal wrenching flats connect to a clamp base.
Material | SS304, SS316L |
|---|---|
Connection | Male-Clamped |
Product overview
Construction and connections

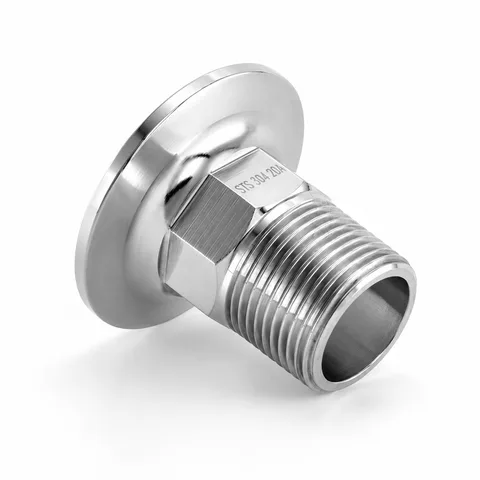

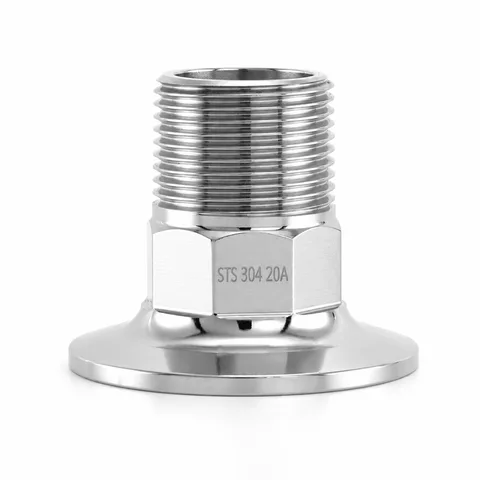

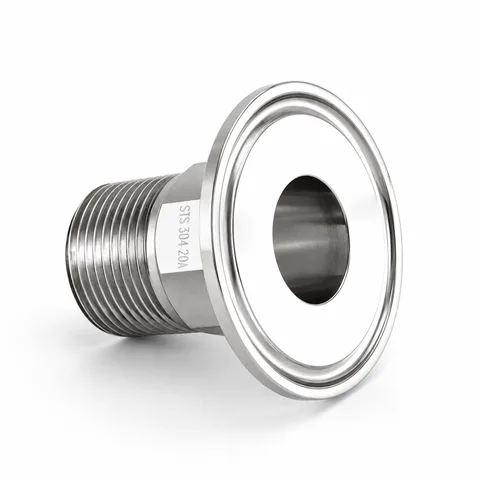

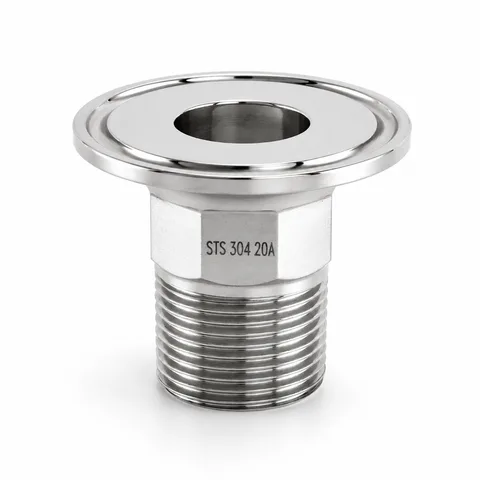

The extended male-thread adapter has a projecting threaded neck above its hexagonal shoulder and clamp flange. The longer neck changes the axial stand-off from the clamp joint to the threaded connection. Select this construction by its actual neck and wrench-flat geometry rather than treating it as an alternate photograph of the short adapter.
Technical specifications
Product series
- End 1
- Tri-Clamp (Product series)
- End 2
- Threaded (Product series)
- Series size range
- ½"~4" (Catalogue range; dimensions vary by size and interface standard.)
- Standard options
- 3A,DIN,SMS,ISO (Interface dimension standard options; select the matching standard and dimensions.)
21MP (Plain Milling)
Applies to the Extended Hex Male-Thread Clamp Adapter series dimensional reference (chart covers 1.0"&1.5"×1/4"–2.0"×2.0"); verify specific end connection standard and mating line dimensions when ordering.
| Size | ØA | ØC | PT | L |
|---|---|---|---|---|
| 1.0"&1.5"×1/4" | 8.56 | 50.5 | 1/4" | 40 |
| 1.0"&1.5"×3/8" | 12.7 | 50.5 | 3/8" | 40 |
| 1.0"&1.5"×1/2" | 15.5 | 50.5 | 1/2" | 45 |
| 1.0"&1.5"×3/4" | 21.3 | 50.5 | 3/4" | 45 |
| 1"&1.5"×1.0" | 28 | 50.5 | 1.0" | 50 |
| 1.0"&1.5"×1 1/4" | 34.8 | 50.5 | 1 1/4" | 50 |
| 2.0"×1.0" | 28 | 64 | 1.0" | 50 |
| 2.0"×1 1/4" | 35.7 | 64 | 1 1/4" | 50 |
| 2.0"×1.5" | 41.8 | 64 | 1 1/2" | 50 |
| 2.0"×2.0" | 47.5 | 64 | 2.0" | 54.7 |

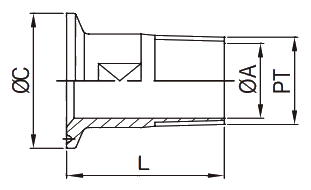

Dimension symbols
- PT
- tapered pipe thread size
- L
- overall face-to-face length
