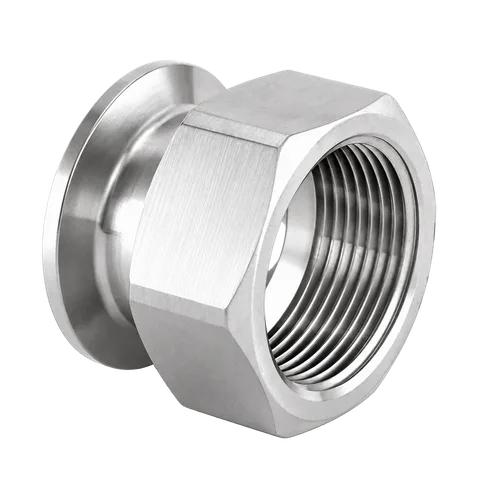

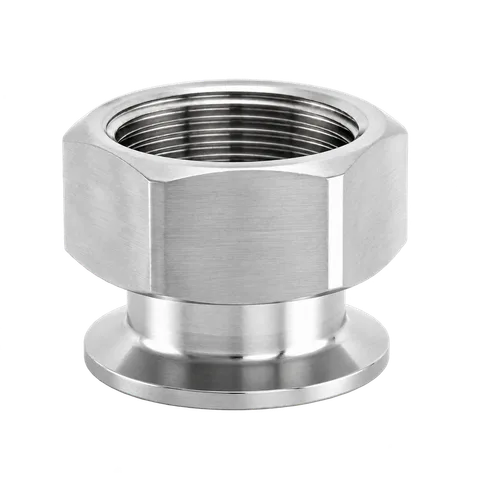

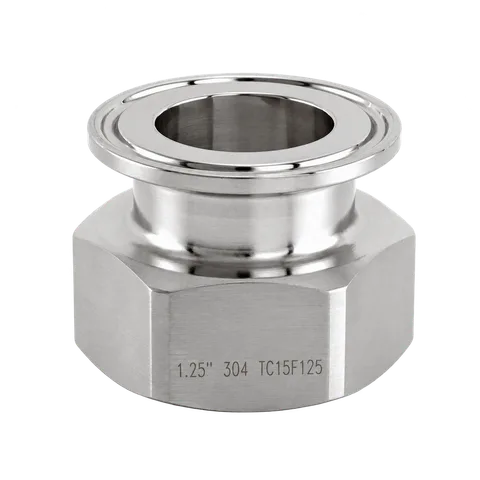

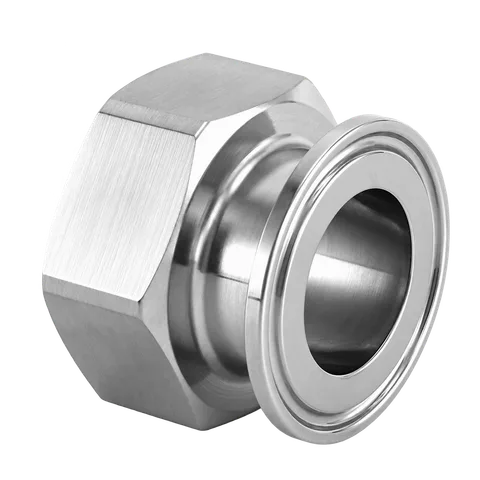

22MP Hex Female-Thread Clamp Adapter
The 22MP adapter combines a female-thread socket, hexagonal wrenching flats and a short clamp base.
Material | SS304, SS316L |
|---|---|
Connection | Female-Clamped |
Product overview
Construction and connection
The female threaded bore connects to a matching threaded fitting. External hexagonal flats provide wrench engagement, and the opposite end has a short clamp ferrule. Match the thread form, bore and clamp sealing dimensions separately; this product is distinct from the sloped-shoulder 22MP adapter.
Technical specifications
Product series
- End 1
- Tri-Clamp (Product series)
- End 2
- Threaded (Product series)
- Series size range
- ½"~4" (Catalogue range; dimensions vary by size and interface standard.)
- Standard options
- 3A,DIN,SMS,ISO (Interface dimension standard options; select the matching standard and dimensions.)
22MP

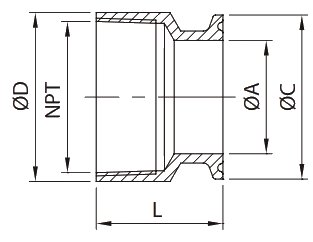

Applies to the 22MP Hex Female-Thread Clamp Adapter series dimensional reference (chart covers 1/2"×1/4"–4.0"×4.0"); verify specific end connection standard and mating line dimensions when ordering.
| Size | ØA (1.0") | ØA (1.5") | ØC | ØD | NPT | L |
|---|---|---|---|---|---|---|
| 1/2"×1/4" | 9.5 | 25 | 30 | 1/4" | 33 | |
| 1/2"×1/2" | 9.5 | 25 | 30 | 1/2" | 33 | |
| 3/4"×1/2" | 15.75 | 25 | 30 | 1/2" | 38.1 | |
| 3/4"×3/4" | 15.8 | 25 | 31 | 3/4" | 33 | |
| 1.0"&1.5"×1.25" | 22.2 | 34.9 | 50.5 | 52 | 1.25" | 39 |
| 1.0"&1.5"×1.5" | 22.2 | 34.9 | 50.5 | 54 | 1.5" | 39 |
| 1.0"&1.5"×2.0" | 22.2 | 34.9 | 50.5 | 65 | 2.0" | 40 |
| 2.0"×2.0" | 47.6 | 64 | 65 | 2.0" | 40 | |
| 2.5"×2.5" | 60.3 | 77.5 | 80 | 2.5" | 50 | |
| 3.0"×2.5" | 73 | 91 | 95 | 2.5" | 50 | |
| 3.0"×3.0" | 73 | 91 | 95 | 3.0" | 52 | |
| 4.0"×4.0" | 97.6 | 119 | 120 | 4.0" | 54 |
Dimension symbols
- ØA (1.0")
- bore diameter for 1.0" clamp option
- ØA (1.5")
- bore diameter for 1.5" clamp option
- NPT
- National Pipe Taper thread size
- L
- overall face-to-face length
