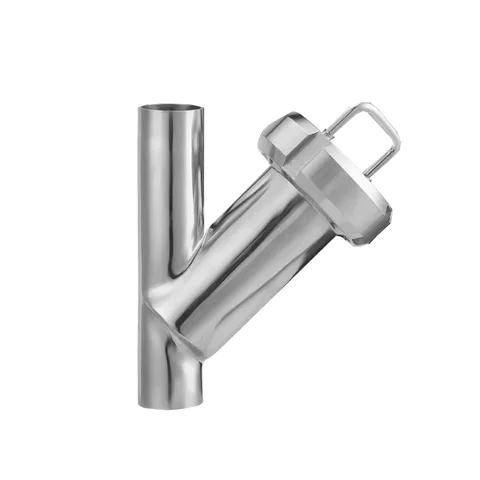

Weld-End Y-Type Sanitary Strainer
The weld Y-strainer adds an angled screen chamber to an in-line passage, with screen assembly through the chamber cover.
Material | SS304, SS316L |
|---|---|
Connection | Weld |
Specification | 1"-6" |
Product overview
Product structure

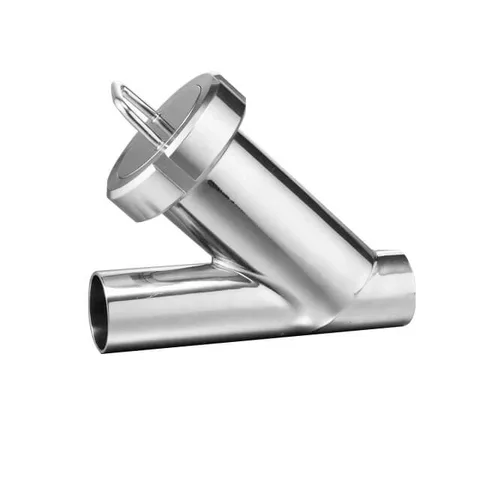

Sanitary Y-type filter strainer constructed with AISI 304 / 316L stainless steel body and butt-weld tube ends. Features an inclined branch housing a cylindrical stainless steel filter mesh, providing high flow capacity and low pressure drop for sanitary fluid handling.
Selection checks
- Element or mesh specification
- Housing and line connections
- Cleaning access and element replacement
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity

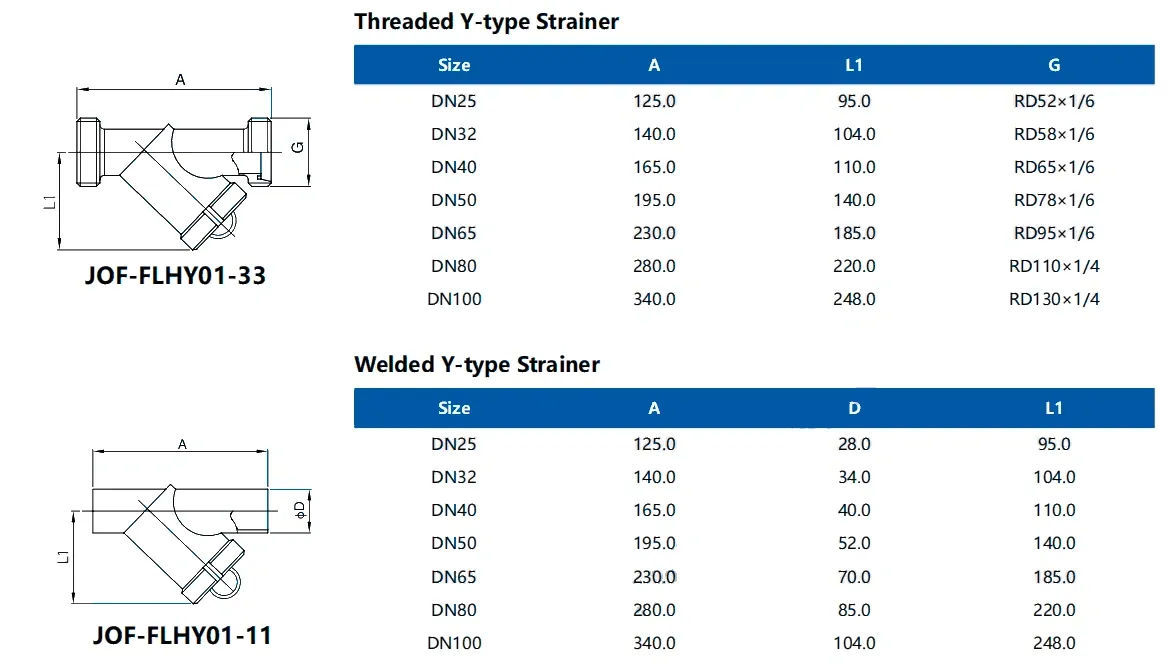

Technical specifications
Materials & seals
- Material Options
- SS304 SS316L
Need a different size, connection or document?
Discuss your requirements
