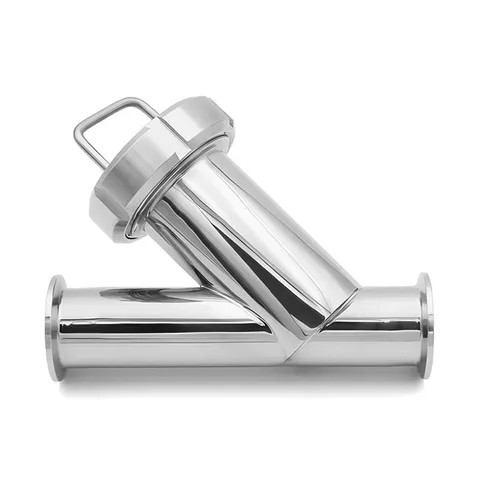

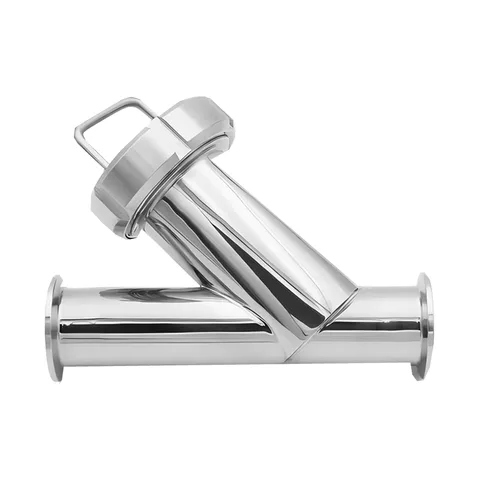

Tri-Clamp Straight-Run Y-Type Strainer
The straight clamp Y-strainer adds an angled screen chamber and end cover to an in-line main passage.
Straight main run with an angled removable screen housing. Kept separate from the curved-run strainer; dimensions are not interchangeable by inference.
Product overview
Product structure
Straight main run with an angled removable screen housing. Kept separate from the curved-run strainer; dimensions are not interchangeable by inference.
Selection checks
- Element or mesh specification
- Housing and line connections
- Cleaning access and element replacement
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity

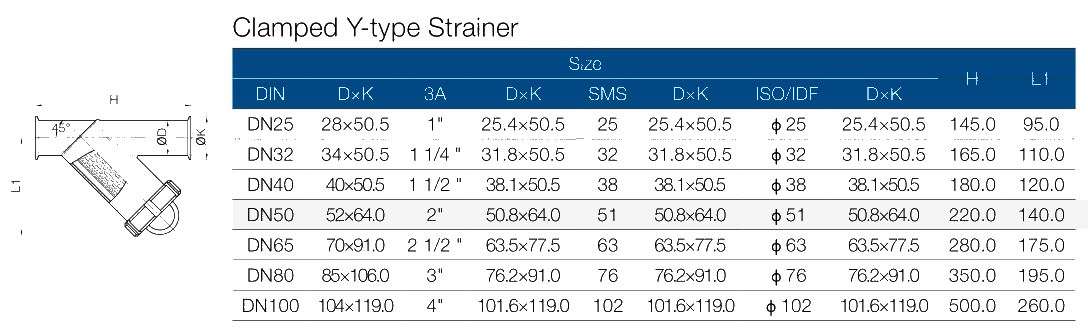

Technical specifications
Materials & seals
- Material Options
- SS304 SS316L
