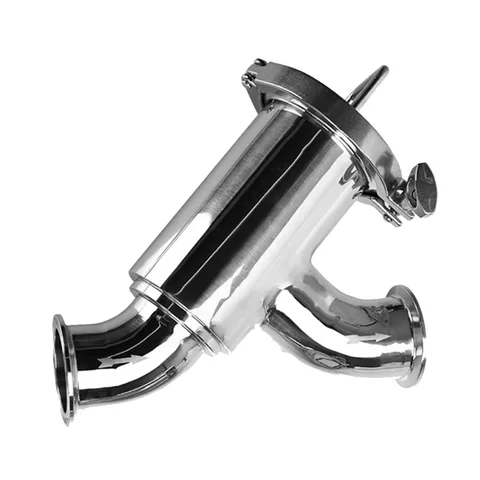

Tri-Clamp Curved-Run Y-Type Strainer
The clamp Y-strainer combines an angled screen chamber and a curved pipe passage, with ferrule ends for mating piping.
Material | SS304, SS316L |
|---|---|
Connection | Clamped |
Product overview
Product structure
Tri-clamp strainer with a curved main run and removable screen housing. Dimensions and screen specification require model confirmation.
Selection checks
- Element or mesh specification
- Housing and line connections
- Cleaning access and element replacement
Prepare your enquiry
End connections · Size range · Material · Seal or gasket · Service fluid · Operating conditions · Quantity
Technical specifications
Materials & seals
- Material Options
- SS304 SS316L
Need a different size, connection or document?
Discuss your requirements
